Oil Skimmers
Oil Skimmer
We are Manufacturers, Suppliers, Exporters of Oil Skimmers, Oil Separators, Disc Type, belt type Oil Skimmers and our set up is situated in Pune, Maharashtra, India.
Oil Skimmer Model : US - 01 Belt
  • Oil Skimming capacity : 3 LPH
  • Drive Geared Motor:3 Watts,Single Phase,220V,AC,50 Hz/60 Hz
  • RPM :10 rpm
  • Driven pulley : Aluminium Dia : Dia 55 mm
  • Belt width: 34 mm
  • Belt Depth : 350 mm.
  • Overall Dimension :75 x 73 x 60 in mm
Oil Skimmer Model : US - 02 SS.Belt
  • Oil skimming capacity : 6 LPH
  • Drive Geared Motor : 10 Watts, Single Phase, 220V, AC, 50 Hz
  • RPM : 10 rpm
  • Belt SS 304 : Width-50 mm, thickness - 0.12mm
  • Belt Depth : 400 mm (Adjustable 100 mm)
Features
  • Top driver pulley is magnetically charged and is designed such that to eliminate any belt slippage and wear as well maximum oil travel and removal from one side of the belt.
  • Imported Steel Endless belts of thickness 0.12mm thickness are used to pick the oil efficiently.
Oil Skimmer Model : US - 03 SS Slat Belt
  • Oil Skimming capacity: 5 LPH for hot liquids having temperature 60 deg.cen & above. 2 to 3 LPH for liquid coolants.
  • Drive Geared Motor : 25 Watts, Single Phase, 220V.AC, 50 Hz / 60 Hz
  • RPM :10 rpm
  • Belt SS 304 : Width - 50 mm, thickness 1.5 mm
  • Belt Depth : 300 mm
Features
  • Top driver pulley is gear drive type on the OD and is designed such that to eliminate any belt slippage.
  • Belt is made of SS304 Steel slats of thickness 1.5 mm and thus it can operate in any type of liquid at any temparature.Belt life is much more than any normal belt due to steel structure with added advantage of maximum oil removal since steel is ideal in oil removal efficiency.

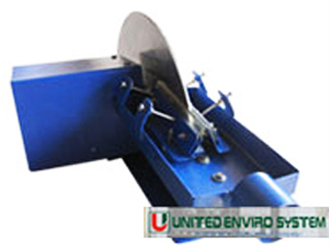

Oil Skimmer Model : US - 04 Disc
  • Oil skimming capacity : 6 LPH
  • Drive Geared Motor : 25 Watts, Single Phase, 220V.AC, 50 Hz / 60 Hz
  • RPM : 10 rpm
  • Disc SS 304 : Dia : 320 with both side grind finish
  • Depth : 100mm (Distance from mounting base to lowest point of Disc.)
Features
  • Wiper holder set with PU wipers to give perfect wiping and low wearing
  • Oil collection channel perfectly balanced to collect oil
  • SS 304 disc bush for sturdy disc holding** Depth: Depth is the distance between skimmer mounting base and lowest liquid level in the tank or it is the distance between your tank top where you are going to fit the skimmer and lowest liquid level of the tank.
